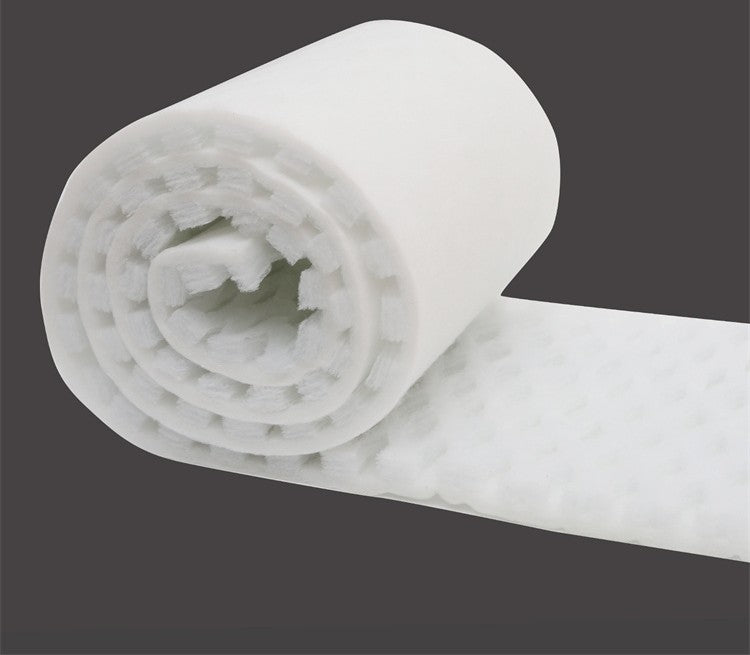

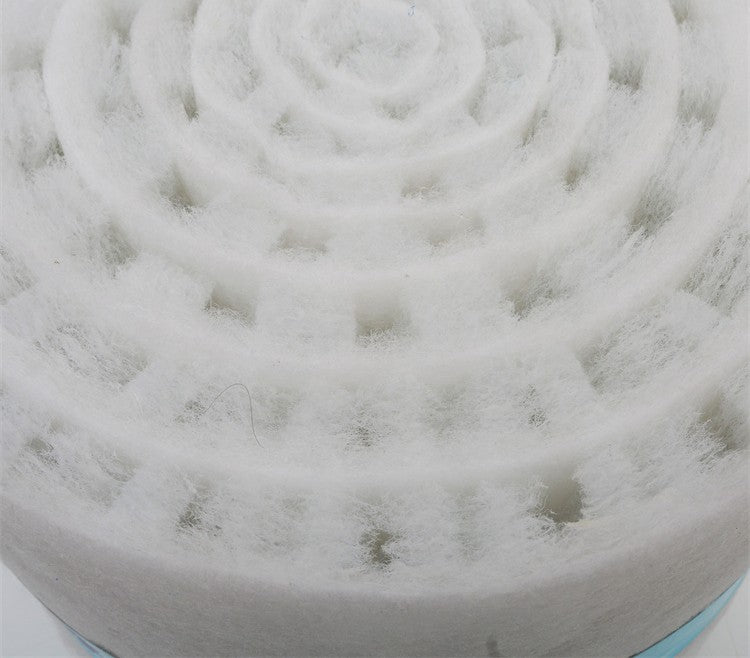

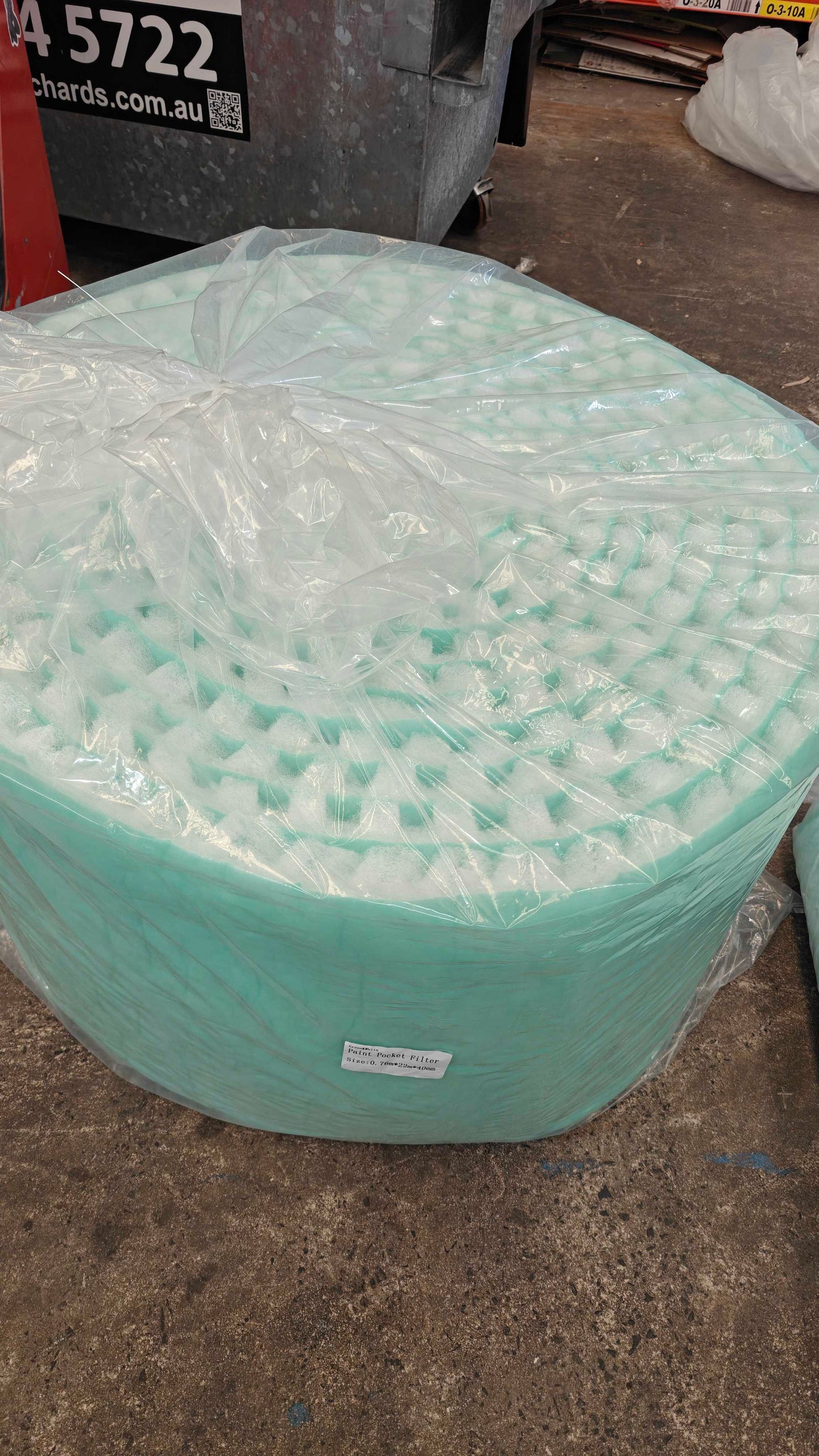

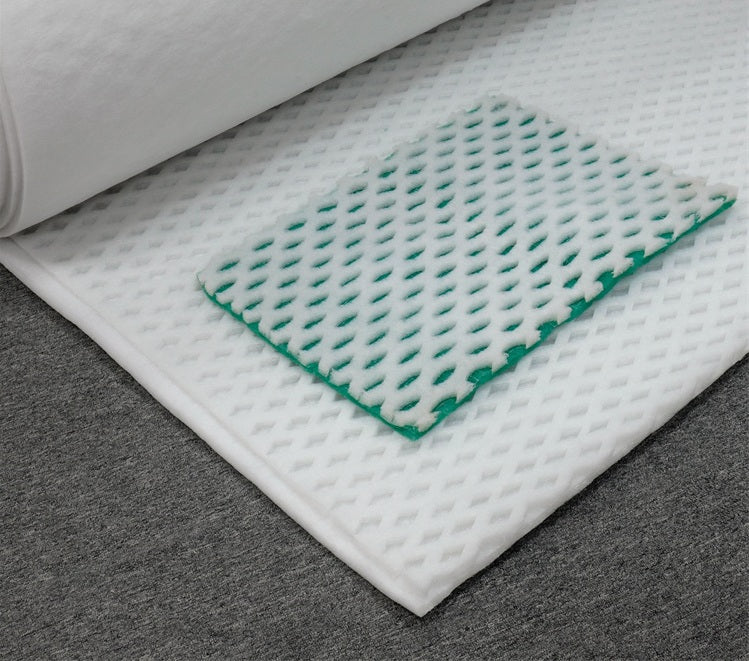

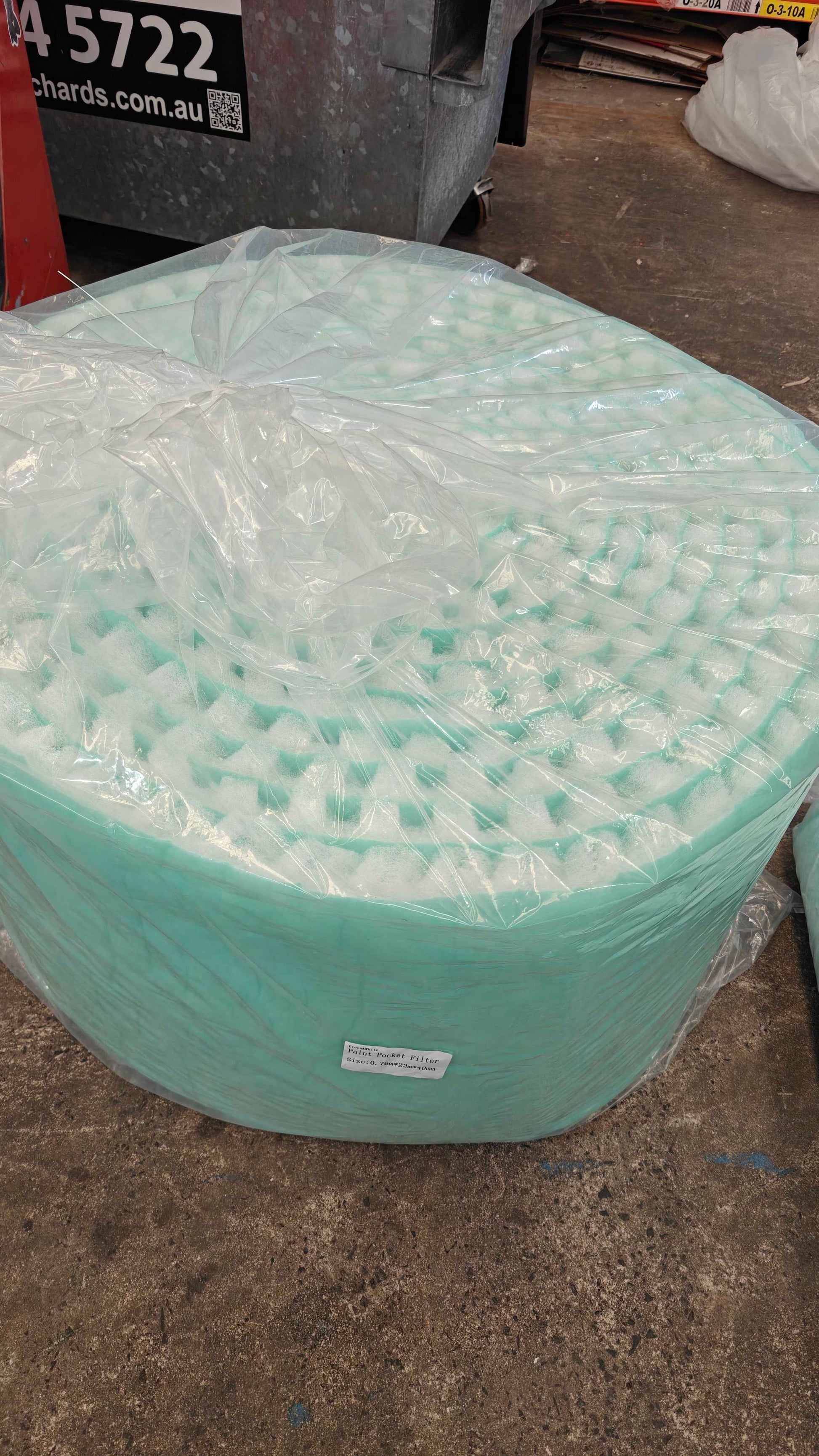

760mm x 22m Polyester Pocket Spray Booth Exhaust Filter Roll

760mm Polyester Pocket Spray Booth Exhaust Filter

Polyester filter media designed to replace glass fibre and other low-efficiency spray booth filter materials. It provides high paint mist capture, low initial resistance, high filtration precision, and a service life reported at 3–5 times longer than these low-efficiency materials.

Key features

• Large dust holding capacity of 28kg/m²
• High-efficiency dual-stage polyester filter rated at 99.84% efficiency at 2.5–10µm
• High paint mist filtration and capture
• 3–5 times longer service life than other general paint mist filter materials

Technical specifications

• Average arrestance: 99.80%
• Nominal velocity: 3.5m/s
• Initial pressure drop (@0.5m/s): 12 Pa
• Maximum pressure drop (@0.5m/s): 250 Pa
• Dust holding capacity: 28kg/m²
• Fractional arrestance efficiency: 100.0% at 20µm, 99.80% at 10µm, 85.00% at 5.0µm, and 4.00% at 2.5µm
