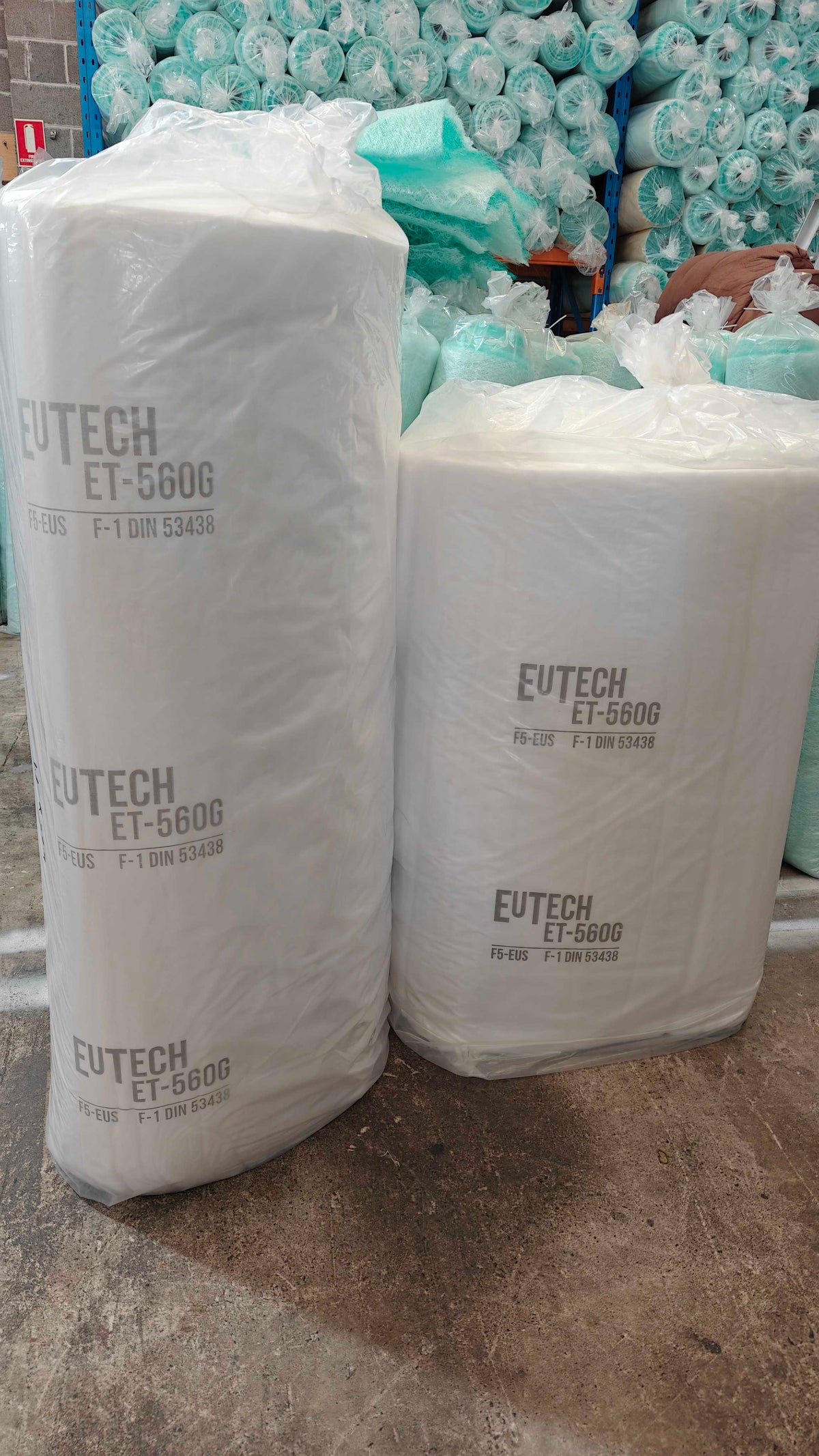

Eutech 560G Ceiling Filter Roll - 1280mm x 20Mtr
Eutech 560G Ceiling Filter Roll - 1280mm x 20Mtr
Couldn't load pickup availability
Share
Eutech 560G ceiling filter is manufactured to a high standard. Ceiling filter is the first stage of filtration
to eliminate dust and other contaminants from entering your spray booth. The filter media is manufactured
with a progressive density to optimise filter life and provide excellent filtration. A tackifying agent is applied
throughout the manufacturing process to ensure each fibre is coated to enhance the dust holding capability.
Our ceiling filter has been tested and exceeds the worldwide filtration standard EN779.
Tests performed returned a 97.9% arrestance of airborne contaminates, which is equivalent to leading European ceiling filter brands.
These filters are suitable for use in all full down draft and semi downdraft spray booths.
|
Technical Data Sheet
Initial pressure loss 27Pa
Final pressure loss 400Pa
Average arrestance 97.9%
Dust holding capacity 435g/m²
Thickness 25mm
Media area 1.0m²
Rated air flow 900m³/hr
Max temperature allowed (peaks) 120°C
Air velocity at test 0.25m/sec
Efficiency class according to DIN 24185 F5
Fire resistance (DIN 53438) F1
|
