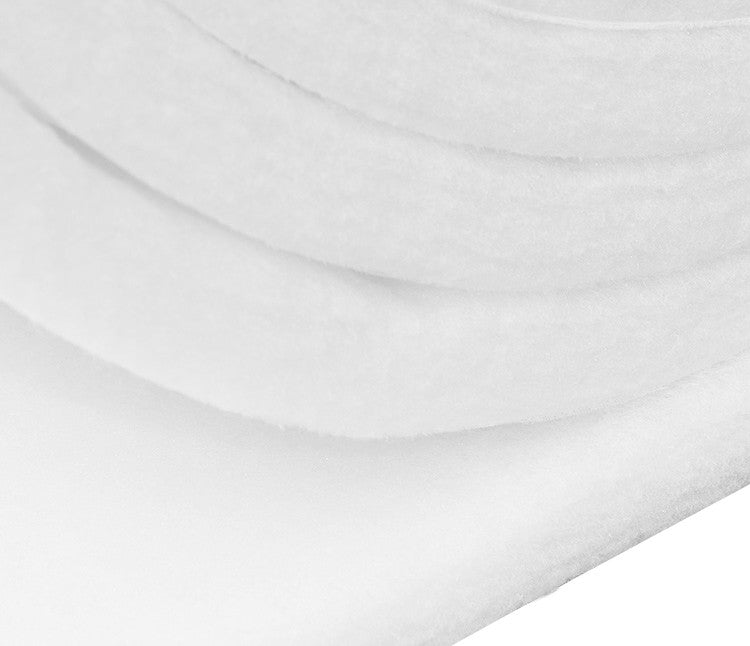

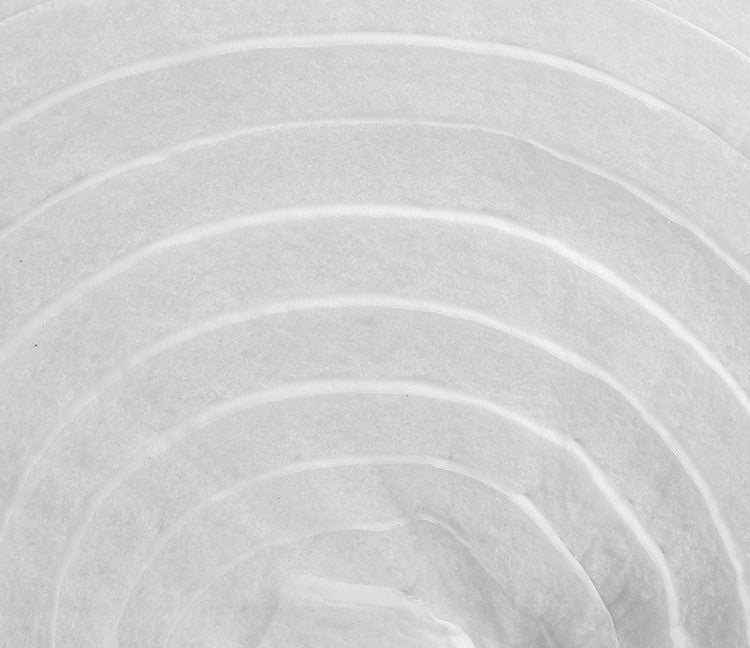

Eutech 560G Ceiling Filter Roll - 1700mm x 20Mtr
Eutech 560G Ceiling Filter Roll - 1700mm x 20Mtr
Couldn't load pickup availability
Share
Eutech 560G ceiling filter is manufactured to a high standard. Ceiling filter is the first stage of filtration to eliminate dust and other contaminants from entering your spray booth. The filter media is manufactured with a progressive density to optimise filter life and provide excellent filtration. A tackifying agent is applied throughout the manufacturing process to ensure each fibre is coated to enhance the dust holding capability.
Our ceiling filter has been tested and exceeds the worldwide filtration standard EN779. Tests performed returned a 97.9% arrestance of airborne contaminates, which is equivalent to leading European ceiling filter brands.
These filters are suitable for use in all full down draft and semi downdraft spray booths.
Technical Data:
Initial Pressure Loss: 27 Pa
Final Pressure Loss: 400 Pa
Average Arrestance: 97.9%
Dust Holding Capacity: 435g/m²
Thickness: 25mm
Media Area: 1.0m²
Rated Air Flow: 900m³/hr
Max Temperature Allowed (peaks): 120°C
Air Velocity at Test: 0.25 m/sec
Efficiency Class (DIN 24185): F5
Fire Resistance (DIN 53438): F1
